VESSEL NAME:

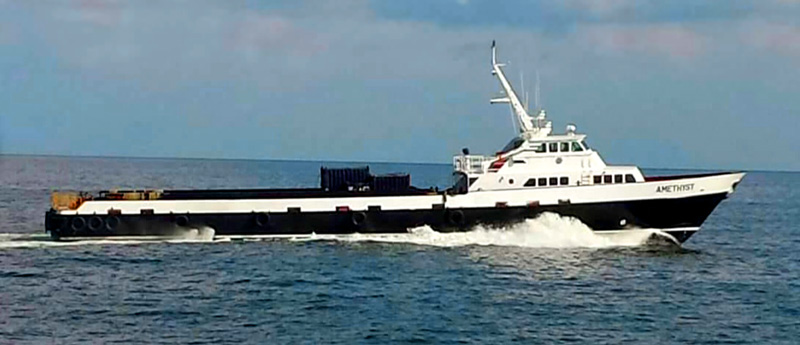

AMETHYST

Amethyst

  • SPECIFICATIONS & GENERAL ARRANGEMENT
    Download File Click here to open specifications sheet in PDF AdobePDF
  • REGISTRATION
    Owner Barry Graham Oil Service, LLC
    Operator Barry Graham Oil Service, LLC
    Year Built2002
    Place BuiltBreaux Brothers Enterprises, Inc.
    Flag USA
    Classification USCG Subchapter T, Aluminum Hull Construction, Passenger (Inspected) Service
  • MAIN CHARACTERISTICS
    Length Overall 155 ft
    Beam 30 ft
    Depth 12.4 ft
    Operating Draft 9.83 ft
    Light Displacement 148.86 LT
    Summer Freeboard 4.56 ft
  • CAPACITIES
    Fuel17,035 USG
    Ballast/Rig Water 25,765 USG
    Potable Water 900 USG
  • DECK CARGO
    Tonnage 274 LT
    Length 90 ft
    Width25 ft
    Clear Deck Area2,250 ft sq
  • TONNAGE
    Gross Registered Tons 98 GT
    Net Registered Tons 66 GT
  • MACHINERY
    Main Engines4-Cummins KTA 38-M2
    Horsepower 5,400 hp
    Reduction Gears 4-Twin Disc MG6650
    Gear Ratio 2.47.1
    Generators 2 Cummins/Onan 6B5.9-D (m) 55kW
    Tunnel Bow Thruster Wesmar 150 hp
    Fire Monitor 1,000 gpm
    Oily Water Separator Heli-Sep
  • PERFORMANCE
    Maximum Speed 27 knots
    Cruising Speed 24 knots
    Economy Speed21 knots
  • FUEL CONSUMPTION
    Maximum Speed 250 USG/hour
    Cruising Speed 225 USG/hour
    Economy Speed 190 USG/hour
  • ACCOMMODATIONS
    Crew 4 persons
    Maximum Passengers 70 persons
    Passenger Area72 first class seats & 1 head
  • ELECTRONICS & CONTROLS
    2 RadarS GPS Positioning Plotter
    SSB Radio 2 VHF Radios
    AIS LocatingDepth Sounder
    Chart PlotterMagnetic Compass
    EPIRB 406 MHZ Loudhailer
    PA SystemNavtex
    BoatracsSatellite Telephone
  • SPECIAL EQUIPMENT
    Life Floats 81 Total Capacity
    Life Preservers 74 Adult
    Rescue Equipment Rescue Platform, Ring Buoys
    DAVIT USCG Inspected
    Fuel Meter Liquid Control with Printer
    Engine Monitoring CSP
    Search Light 3 Total
    FirefightingFixed CO2 System in all Machinery Spaces , Hand Portable & Semi Portable Throughout vessel
    Fire Detection Integrated Smoke & Heat Detection
