VESSEL NAME:

JOHN JACOB

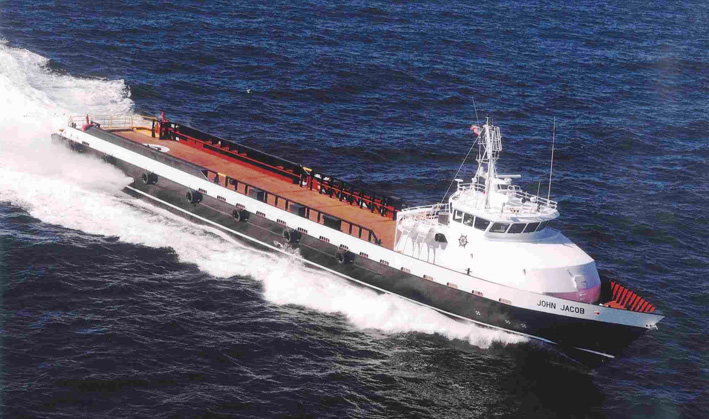

MV John Jacob
(Scroll down to view more images of this vessel)

  • SPECIFICATIONS & GENERAL ARRANGEMENT
    Download File Click here to open specifications sheet in PDF AdobePDF
  • REGISTRATION
    Owner Barry Graham Oil Service, LLC
    Operator Barry Graham Oil Service, LLC
    Year Built2013
    Place BuiltHalimar Shipyard, LLC
    Flag USA
    Classification USCG Subchapter T, Aluminum Hull Construction, Passenger (Inspected) Service, ABS + A1 HSC + AMS + DPS-2
  • MAIN CHARACTERISTICS
    Length Overall 205.5 ft
    Beam 32 ft
    Depth 13.6 ft
    Operating Draft 9.25 ft
    Light Displacement 248.05 LT
    Summer Freeboard 5.25 ft
  • CAPACITIES
    Cargo Fuel17,484 USG
    ship's fuel 15,296 USG
    Rig Water 42,588 USG
    Ballast 19,342 USG
    Potable Water 1,300 USG
  • DECK CARGO
    Tonnage 450 LT
    Length 140 ft
    Width26 ft
    Clear Deck Area3,740 ft sq
  • TONNAGE
    Gross Registered Tons 94 GT
    Net Registered Tons 64 GT
  • MACHINERY
    Main Engines4-Cummins QSK 50
    Horsepower 7,200 hp
    Waterjets 4- Hamilton HM-811
    Reduction Gears 4-Twin Disc MGX-6848SC
    Gear Ratio 2.47:1
    Generators 3– 185 KW
    Bow Thrusters 3– Thrustmaster 150 hp

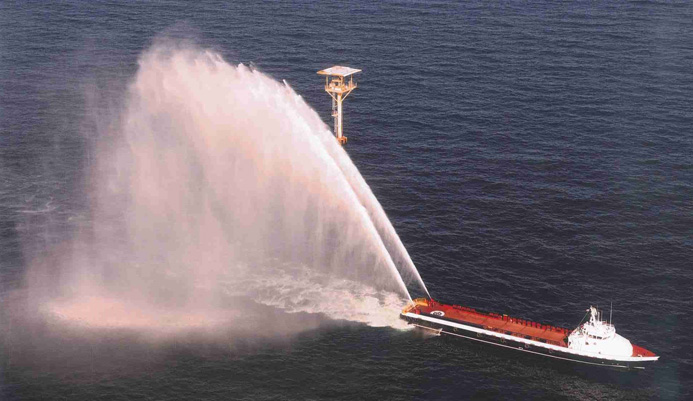

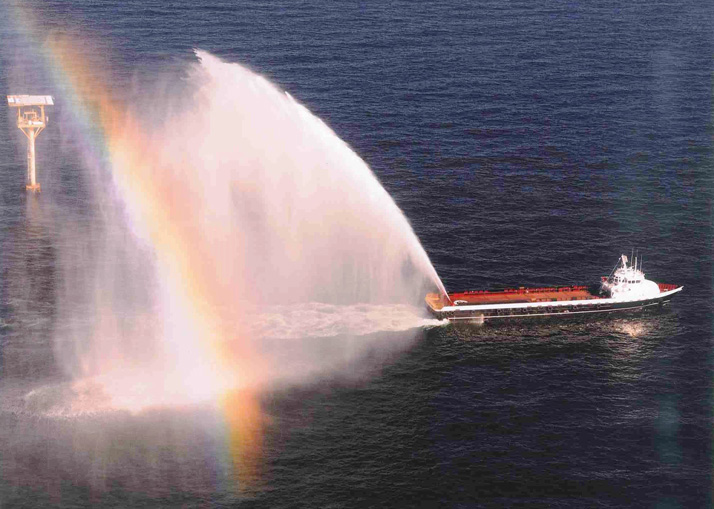

    Fifi Monitors 2– 5,284 gpm @ 394 ft
  • PERFORMANCE
    Maximum Speed 32 knots
    Cruising Speed 26 knots
    Economy Speed23 knots
  • FUEL CONSUMPTION
    Maximum Speed 325 USG/hour
    Cruising Speed 300 USG/hour
    Economy Speed 250 USG/hour
  • ACCOMMODATIONS
    Crew 4 persons
    Maximum Passengers 72 persons
    EEP 100 persons
    Births 12
    Passenger Area72 first class seats & 1 head
  • ELECTRONICS & CONTROLS
    2 RadarS GPS Positioning Plotter
    SSB Radio 2 VHF Radios
    AIS LocatingDepth Sounder
    Chart PlotterMagnetic Compass
    EPIRB 406 MHZ Loudhailer
    PA SystemNavtex
    BoatracsSatellite Telephone
    Dynamic Position—DP 2
  • SPECIAL EQUIPMENT
    Inflatable Life Rafts 80 Total Capacity
    Life Preservers 83 Adult
    Rescue Equipment Rescue Platform, Ring Buoys
    DAVIT USCG Inspected
    Fuel Meter Flow Meter with Printer
    Engine Monitoring CSP
    Search Light 3 Total
    FirefightingFixed CO2 System in all Machinery Spaces , Hand Portable & Semi Portable Throughout vessel
    Fire Detection Integrated Smoke & Heat Detection

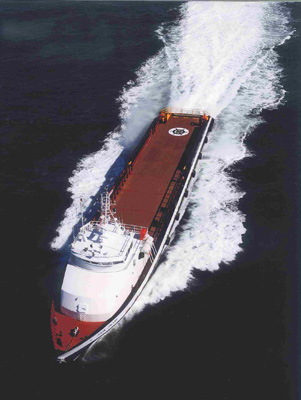

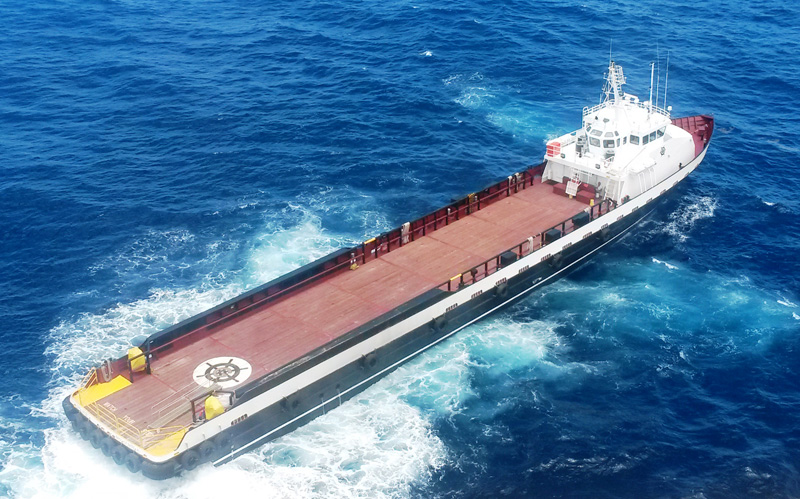

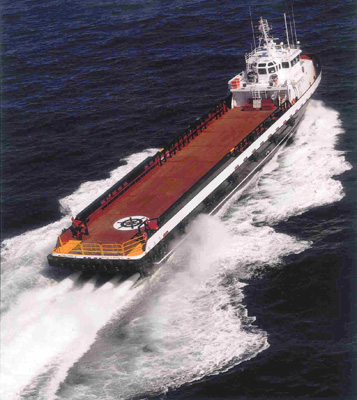

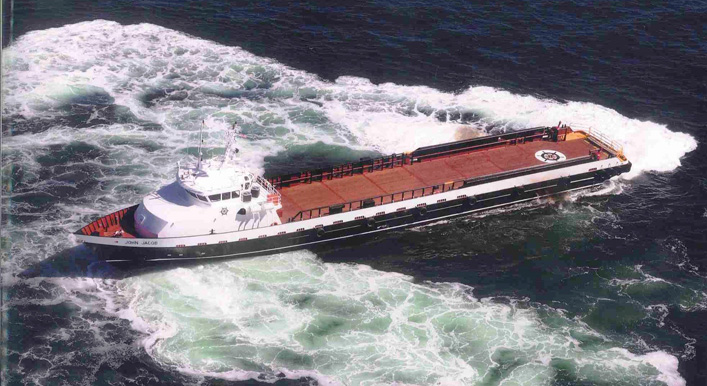

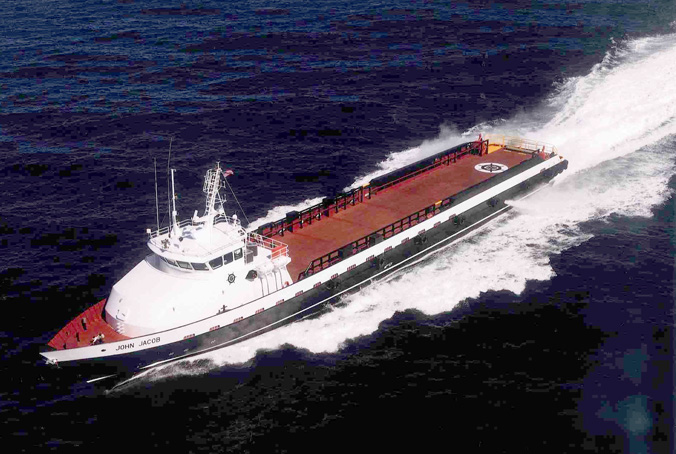

  • ADDITIONAL PHOTOS
    JohnJacob
    JohnJacob
    JohnJacob
    JohnJacob
    JohnJacob
    JohnJacob
    JohnJacob
