VESSEL NAME:

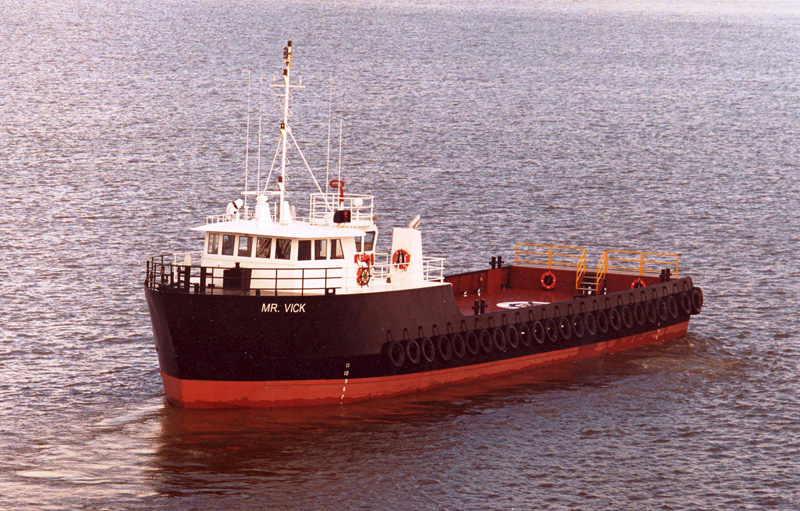

MR. VICK

Mr Vick

  • SPECIFICATIONS & GENERAL ARRANGEMENT
    Download File Click here to open specifications sheet in PDF AdobePDF
  • REGISTRATION
    Owner Barry Graham Oil Service, LLC
    Operator Barry Graham Oil Service, LLC
    Year Built 2003
    Place Built Halimar Shipyard, LLC
    Flag USA
    Classification USCG Subchapter L, Steel Hull Construction, Utility Vessel (OSV)
  • MAIN CHARACTERISTICS
    Length Overall 126 ft
    Beam 30 ft
    Depth 12 ft
    Operating Draft 10.6 ft
    Light Displacement 259.77 LT
    Summer Freeboard 1.5 ft
  • CAPACITIES
    Fuel 25,058
    Potable Water 7,572 USG
    Ballast Water 46,662 USG
    Rig Water 23,368 USG
    Methanol 12,955 USG (308.45 BBLS)
    Cooler Walk-In 350 ft cu
    Freezer Walk-In 350 ft cu
  • DECK CARGO
    Tonnage 249 LT
    Length 72 ft
    Width 26 ft
    Clear Deck Area 1,872 ft sq
  • TONNAGE
    Gross Registered Tons 97 GT
    Net Registered Tons 66 GT
  • MACHINERY
    Main Engines 2– Cummins KTA 38-MO
    Horsepower 1,600 hp
    Reduction Gears Twin disc MG5225
    Gear Ratio 5.04:1
    Generators 2– Cummins/Onan 6B5.9-D (m) 55kw
    Tunnel Bow Thruster 300 hp
    Fire Monitor 2,500 gpm
  • PERFORMANCE
    Maximum Speed (Light Ship) 13.8 knots (57 LT)
    Maximum Speed (Full Load) 11.5 knots (350 LT)
  • FUEL CONSUMPTION
    Maximum Speed (Light Ship) 78 USG/hour
    Maximum Speed (Full Load) 78 USG/hour
  • ACCOMMODATIONS
    Crew 4 persons
    Maximum Passengers 36 persons, Limited to 16 persons when carrying Methyl Alcohol
    Berths 16
  • ELECTRONICS & CONTROLS
    Radar GPS Positioning Plotter
    SSB Radio 3 VHF Radios
    AIS Locating Depth Sounder
    Chart Plotter Magnetic Compass
    EPIRB 406 MHZ Loudhailer
    PA System Navtex
    Boatracs Satellite Telephone
  • SPECIAL EQUIPMENT
    Life Floats 40 Total Capacity
    Life Preservers 43 Adult
    Rescue Equipment Rescue Platform, Ring Buoys
    DAVIT USCG Inspected
    Fuel Meter Rotary Meter, Flow Meter Register with Printer
    Engine Monitoring CSP
    Search Light 3 Total
    Firefighting Hand Portable & Semi-Portable throughout vessel
    Fire Detection Integrated Smoke & Heat Detection
