VESSEL NAME:

MS. JILL

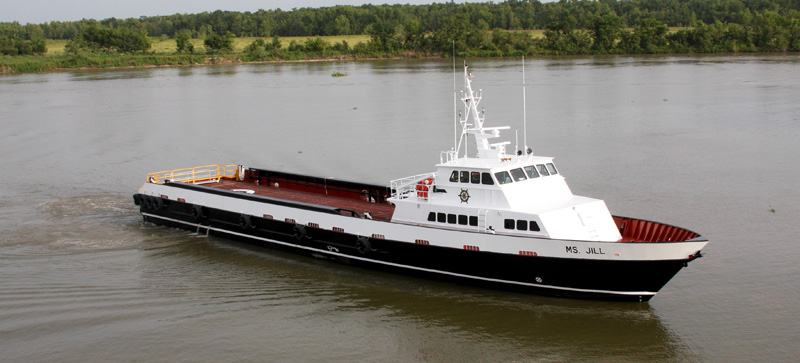

Ms Jill

  • SPECIFICATIONS & GENERAL ARRANGEMENT
    Download File Click here to open specifications sheet in PDF AdobePDF
  • REGISTRATION
    Owner Barry Graham Oil Service, LLC
    Operator Barry Graham Oil Service, LLC
    Year Built 2009
    Place Built Halimar Shipyard, LLC
    Flag USA
    Classification USCG Subchapter T, Aluminum Hull Construction, Passenger (Inspected) Service
  • MAIN CHARACTERISTICS
    Length Overall 170 ft
    Beam 30 ft
    Depth 14.3 ft
    Operating Draft 9.375 ft
    Light Displacement 166.86 LT
    Summer Freeboard 4.27 ft
  • CAPACITIES
    Fuel 20,021 USG
    BALLAST 25,462 USG
    Cargo WAter 35,478 USG
    Potable Water 950 USG
  • DECK CARGO
    Tonnage 299 LT
    Length 103 ft
    Width 25 ft
    Clear Deck Area 2,575 ft sq
  • TONNAGE
    Gross Registered Tons 86 GT
    Net Registered Tons 59 GT
  • MACHINERY
    Main Engines 4-Cummins KTA 50-M2
    Horsepower 7,200 hp
    Reduction Gears 4-Twin Disc MGX-6848SC
    Gear Ratio 2.47:1
    Generators 2–65 KW
    Tunnel Bow Thruster Wesmar 150 hp
    Fire Monitor 2,500 gpm
    Oily Water Separator Heli-Sep
  • PERFORMANCE
    Maximum Speed 27 knots
    Cruising Speed 25 knots
    Economy Speed 22 knots
  • FUEL CONSUMPTION
    Maximum Speed 300 USG/hour
    Cruising Speed 275 USG/hour
    Economy Speed 240 USG/hour
  • ACCOMMODATIONS
    Crew 4 persons
    Maximum Passengers 72 persons
    Births 10 (inclusive of crew)
    Passenger Area 72 first class seats & 1 head
  • ELECTRONICS & CONTROLS
    2 RadarS GPS Positioning Plotter
    SSB Radio 2 VHF Radios
    AIS Locating Depth Sounder
    Chart Plotter Magnetic Compass
    EPIRB 406 MHZ Loudhailer
    PA System Navtex
    Boatracs Satellite Telephone
    Dynamic Position—DP 1
  • SPECIAL EQUIPMENT
    Life Floats 83 Total Capacity
    Life Preservers 76 Adult
    Rescue Equipment Rescue Platform, Ring Buoys
    DAVIT USCG Inspected
    Fuel Meter Flow Meter with Printer
    Engine Monitoring CSP
    Search Light 3 Total
    Firefighting Fixed CO2 System in all Machinery Spaces , Hand Portable & Semi Portable Throughout vessel
    Fire Detection Integrated Smoke & Heat Detection
