VESSEL NAME:

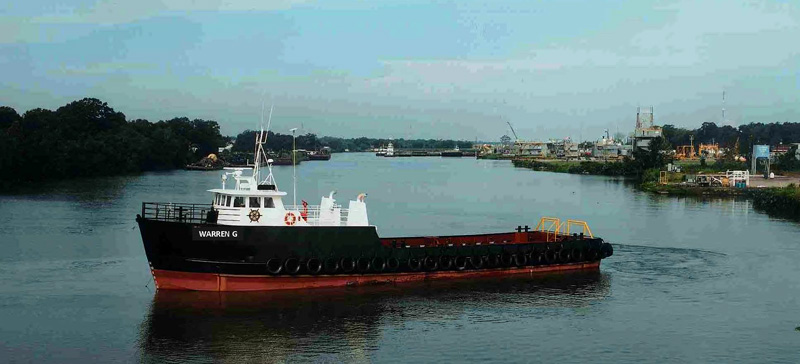

WARREN G

Warren G

  • SPECIFICATIONS & GENERAL ARRANGEMENT
    Download File Click here to open specifications sheet in PDF AdobePDF
  • REGISTRATION
    Owner Barry Graham Oil Service, LLC
    Operator Barry Graham Oil Service, LLC
    Year Built 1977
    Refurbished 2004
    Place Built Offshore Trawlers, Inc.
    Flag USA
    Classification USCG Subchapter L, Steel Hull Construction, Passenger (Inspected)
  • MAIN CHARACTERISTICS
    Length Overall 110 ft
    Beam 26 ft
    Depth 6.7 ft
    Operating Draft 8.58 ft
  • CAPACITIES
    Fuel 22,182 USG
    Ballast/Rig Water 34,626 USG
    Walk-In Cooler
  • DECK CARGO
    Tonnage 80 LT
    Length 56 ft
    Width 20 ft
    Clear Deck Area 1,120 ft sq
  • TONNAGE
    Gross Registered Tons 98 GT
    Net Registered Tons 66 GT
  • MACHINERY
    Main Engines 2- Detroit Diesel 16v92 NA
    Horsepower 1,200 hp
    Generators 2- 40 kw
    Fire Monitor 1,000 gpm
  • PERFORMANCE
    Maximum Speed 12 knots
    Cruising Speed 10 knots
  • FUEL CONSUMPTION
    Maximum Speed 45 USG/hour
    Cruising Speed 45 USG/hour
  • ACCOMMODATIONS
    Crew 4 persons
    Maximum Passengers 32 persons
    Berths 18
  • ELECTRONICS & CONTROLS
    Radar GPS Positioning Plotter
    SSB Radio 3 VHF Radios
    AIS Locating Depth Sounder
    Chart Plotter Magnetic Compass
    EPIRB 406 MHZ Loudhailer
    PA System Navtex
    Boatracs
  • SPECIAL EQUIPMENT
    Life Floats 36 Total Capacity
    Life Preservers 36 Adult
    Rescue Equipment Rescue Platform, Ring Buoys
    DAVIT USCG Inspected
    Fuel Meter Rotary Meter, Flow Meter Register with Printer
    500# Danforth Anchor 1 with 600' of Nylon Line
    Search Light 1 Total
    Firefighting Hand Portable & Semi-Portable throughout vessel
    Fire Detection Integrated Smoke & Heat Detection
