VESSEL NAME:

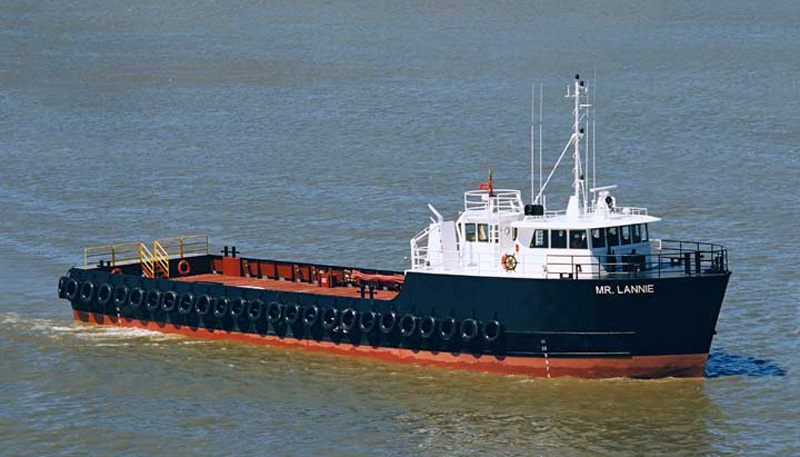

MR. LANNIE
- SPECIFICATIONS & GENERAL ARRANGEMENT
Download File Click here to open specifications sheet in PDF
- REGISTRATION
Owner Barry Graham Oil Service, LLC Operator Barry Graham Oil Service, LLC Year Built 2003 Place Built Halimar Shipyard, LLC Flag USA Classification USCG Subchapter L, Steel Hull Construction, Utility Vessel (OSV) - MAIN CHARACTERISTICS
Length Overall 126 ft Beam 30 ft Depth 12 ft Operating Draft 10.6 ft Light Displacement 262.33 LT Summer Freeboard 1.5 ft - CAPACITIES
Fuel 25,058 Potable Water 7,572 USG Ballast Water 46,662 USG Rig Water 23,368 USG Methanol 12,955 USG (308.45 BBLS) Cooler Walk-In 350 ft cu Freezer Walk-In 350 ft cu - DECK CARGO
Tonnage 249 LT Length 72 ft Width 26 ft Clear Deck Area 1,872 ft sq - TONNAGE
Gross Registered Tons 97 GT Net Registered Tons 66 GT
- MACHINERY
Main Engines 2– Cummins KTA 38-MO Horsepower 1,600 hp Reduction Gears Twin disc MG5225 Gear Ratio 5.04:1 Generators 2– Cummins/Onan 6B5.9-D (m) 55kw Tunnel Bow Thruster 300 hp Fire Monitor 2,500 gpm - PERFORMANCE
Maximum Speed (Light Ship) 13.8 knots (57 LT) Maximum Speed (Full Load) 11.5 knots (350 LT) - FUEL CONSUMPTION
Maximum Speed (Light Ship) 78 USG/hour Maximum Speed (Full Load) 78 USG/hour - ACCOMMODATIONS
Crew 4 persons Maximum Passengers 36 persons, Limited to 16 persons when carrying Methyl Alcohol Berths 16 - ELECTRONICS & CONTROLS
Radar GPS Positioning Plotter SSB Radio 3 VHF Radios AIS Locating Depth Sounder Chart Plotter Magnetic Compass EPIRB 406 MHZ Loudhailer PA System Navtex Boatracs Satellite Telephone - SPECIAL EQUIPMENT
Life Floats 40 Total Capacity Life Preservers 43 Adult Rescue Equipment Rescue Platform, Ring Buoys DAVIT USCG Inspected Fuel Meter Rotary Meter, Flow Meter Register with Printer Engine Monitoring CSP Search Light 3 Total Firefighting Hand Portable & Semi-Portable throughout vessel Fire Detection Integrated Smoke & Heat Detection
