VESSEL NAME:
MS. MARY
(Scroll down to view more images of this vessel)
- SPECIFICATIONS & GENERAL ARRANGEMENT
Download File Click here to open specifications sheet in PDF
- REGISTRATION
Owner Barry Graham Oil Service, LLC Operator Barry Graham Oil Service, LLC Year Built 2010 Place Built Halimar Shipyard, LLC Flag USA Classification USCG Subchapter T, Aluminum Hull Construction, Passenger (Inspected) Service - MAIN CHARACTERISTICS
Length Overall 170 ft Beam 30 ft Depth 12.3 ft Operating Draft 9.375 ft Light Displacement 167.76 LT Summer Freeboard 4.27 ft - CAPACITIES
Fuel 20,021 USG BALLAST 25,462 USG Cargo WAter 35,478 USG Potable Water 950 USG - DECK CARGO
Tonnage 276 LT Length 103 ft Width 25 ft Clear Deck Area 2,575 ft sq - TONNAGE
Gross Registered Tons 86 GT Net Registered Tons 59 GT
- MACHINERY
Main Engines 4-Cummins KTA 50-M2 Horsepower 7,200 hp Reduction Gears 4-Twin Disc MGX-6848SC Gear Ratio 2.47:1 Generators 2–65 KW Tunnel Bow Thruster Wesmar 150 hp Fire Monitor 2,500 gpm Oily Water Separator Heli-Sep - PERFORMANCE
Maximum Speed 26 knots Cruising Speed 25 knots Economy Speed 22 knots - FUEL CONSUMPTION
Maximum Speed 285 USG/hour Cruising Speed 250 USG/hour Economy Speed 225 USG/hour - ACCOMMODATIONS
Crew 4 persons Maximum Passengers 72 persons Births 10 (inclusive of crew) Passenger Area 72 first class seats & 1 head - ELECTRONICS & CONTROLS
2 RadarS GPS Positioning Plotter SSB Radio 2 VHF Radios AIS Locating Depth Sounder Chart Plotter Magnetic Compass EPIRB 406 MHZ Loudhailer PA System Navtex Boatracs Satellite Telephone Dynamic Position—DP 1 - SPECIAL EQUIPMENT

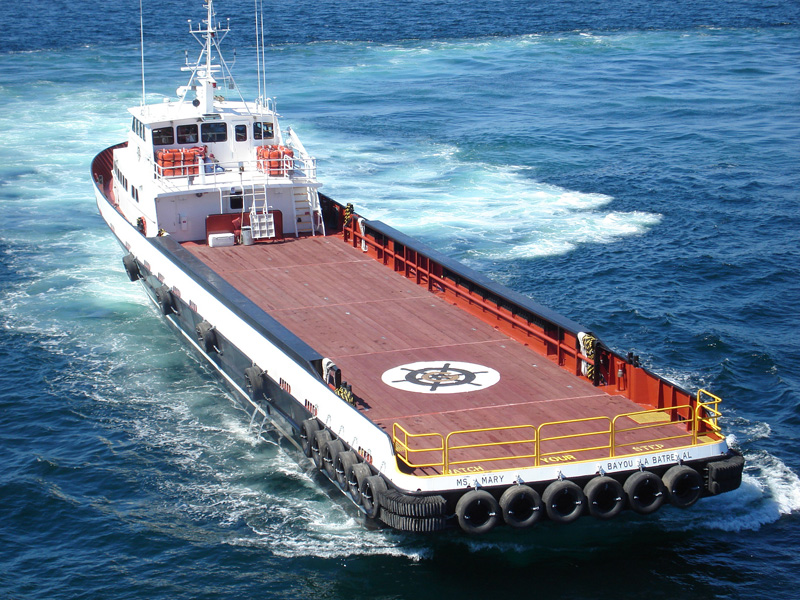

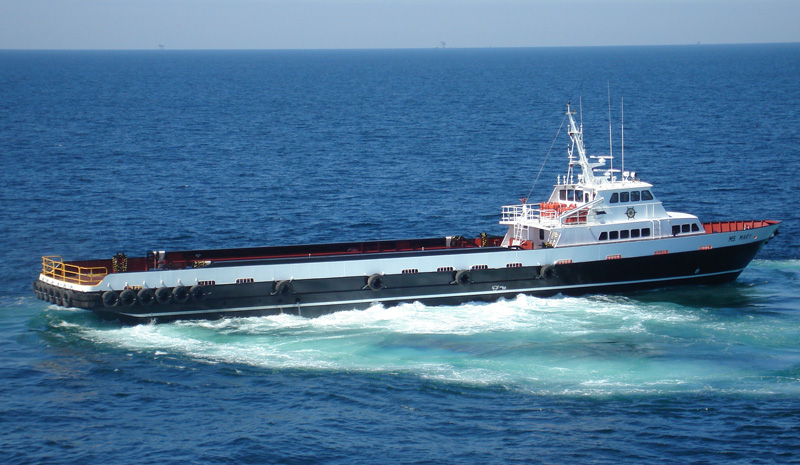

Life Floats 90 Total Capacity Life Preservers 76 Adult Rescue Equipment Rescue Platform, Ring Buoys DAVIT USCG Inspected Fuel Meter Flow Meter with Printer Engine Monitoring CSP Search Light 3 Total Firefighting Fixed CO2 System in all Machinery Spaces , Hand Portable & Semi Portable Throughout vessel Fire Detection Integrated Smoke & Heat Detection - ADDITIONAL PHOTOS
